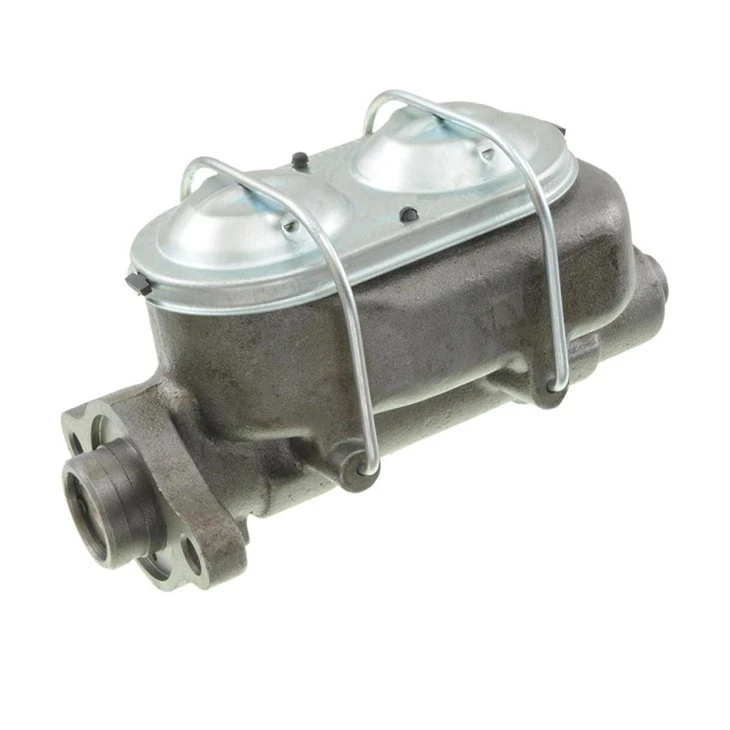

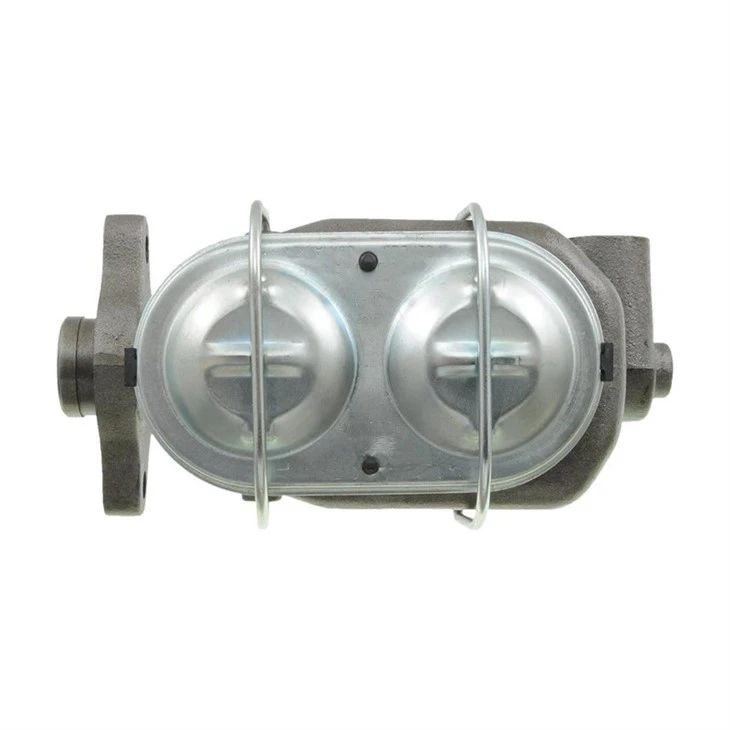

Brake Master Cylinder For Chevrolet Corvette 1977-1982 M39052

Part Name: Brake Master Cylinder
Part NO.:SY-BMC-2704
OE NO.:M39052
Reference Numbers: 131.62071 130.62071 18002069 18004253 NM1749 83-36071 F101264 MC101264 11749 MC39052 M900256 M-82071 18M91 174-512 13-1749

Products Description

Part Name	Brake Master Cylinder
Internal No.	SY-BMC-2704
OE No.	M39052
Bore Size	1 1/8"28.58MM
Material	Grey Cast Iron

Reference No.

Centric Parts	131.62071 / 130.62071
General Motors	18002069 / 18004253 / 18002064
Fenco	NM1749
ARI	83-36071 / 783-36071
Wagner Brake	F101264 / MC101264
Bendix	11749
Raybestos Brakes	MC39052
Aimco	M900256
Autospecialty	M-82071
ACDelco	18M91 / 174-512
CARDONE New	13-1749

Adapted Models

Brand	Model	Year
Chevrolet	Corvette	1977-1982

Products Advantage

1:1 Mold Development

1:1mold development Exact size

ZL111 Aluminium Material

ZL111 Aluminum material,hardness higher than 110HB.Close to the original surface treament.

Accurate And Efficient

CNC machine tools to ensure the accuracy efficiency of the products, especially the threads.

Electrophoresis Process

For iron products, we will use electrophoresis technology to achieve the effect of no rust and smooth surface.

Piston Hard Anodized

The piston are all hard anodized, high precision,
good wear resistance and not easy to rust.

Honing Multiple Times

At least 2times honing processes,morn smooth,no corners.

High-Quality Accessories

Polymer Characteristics

In addition to excellent general characteristics including heat resistance,weather resistance,ozone resistance, chemical resistance and electrical properties.
These grades of EP also offers a faster vulcanization rate,and lower compression set and stronger resistance to flex cracking than general-purpose EP.JSR EP grades are suited to application in functional parts such as packing or diaphragms.
EP331 and EP342,in particular. Offer the best compression set and cold resistance among any of SR EPgrades through the use of array operations with ethylene and propylene. Many of JSR grades have a low Mooney viscosity (M),and JSR EP lineup offers an excellent balance of both product properties and processability.

The Rubber Piston Cup user EPDM as the raw material labeled EP-35, all imported from

Japan. All are imported to bring better sealing performance and oil return characteristics.
