Products Description

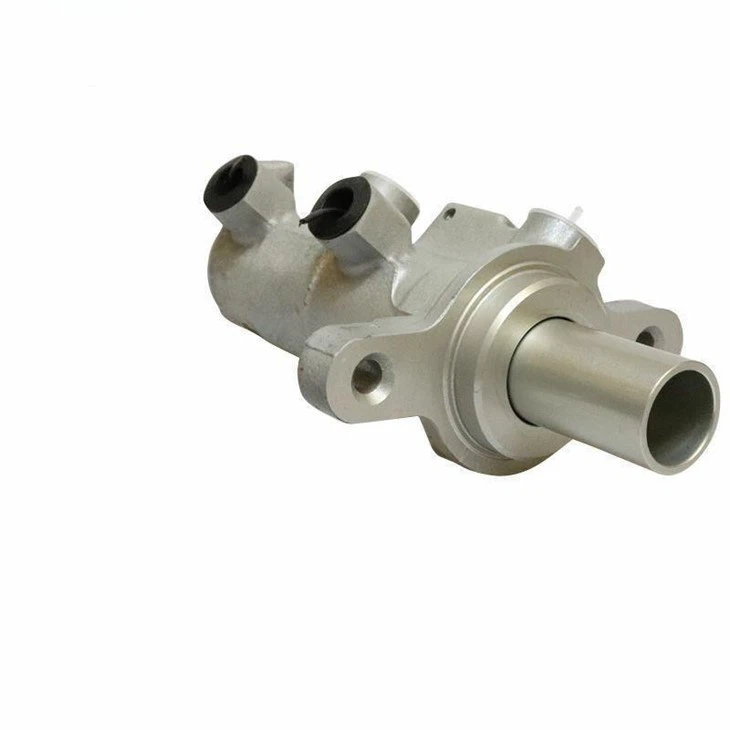

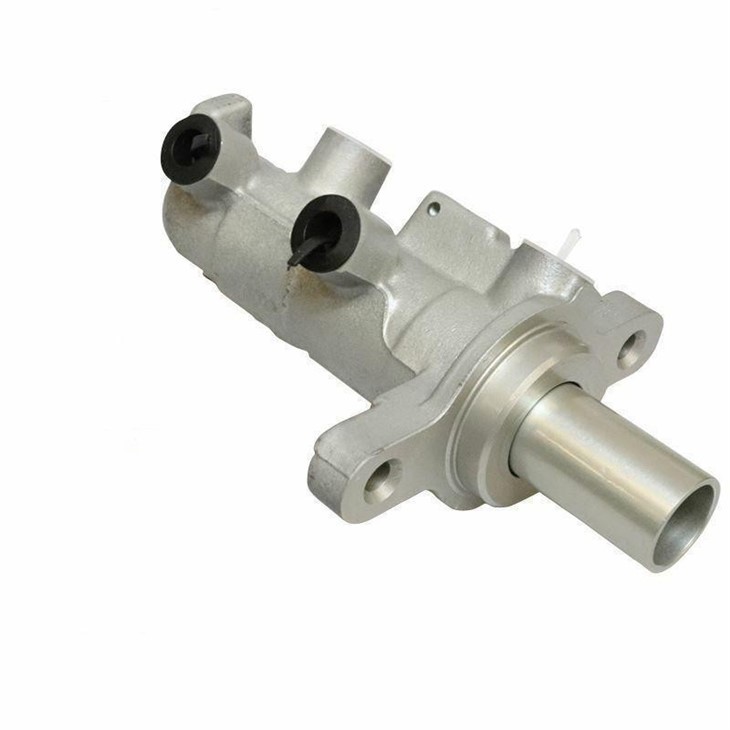

Part Name	Brake Master Cylinder
Internal No.	SY-BMC-2339
OE No.	BK31 2004 AA
Bore Size	1 1/8"28.58MM
Material	Aluminum

Reference No.

FORD	BK31-2004-AA
FORD	1855169
BOSCH	0 204 814 220

Adapted Models

Brand	Model	Year	Engine
FORD	TRANSIT V363 Bus (FAD, FBD) 2.0 EcoBlue	2016-	BKFA,BKFB,YMF6,YMFA,YMFB,YMFS,BJFA,BJFB,YLF6,YLFA,YLFB,YLFS,BLFA,BLFB,YNF6,YNFA,YNFB,YNFS
FORD	TRANSIT V363 Bus (FAD, FBD) 2.2 TDCi	2013-2018	DRF5,DRFF,DRFG,CVF5,CY14,CYF5,CYFG,USF6
FORD	TRANSIT V363 Bus (FAD, FBD) 2.2 TDCi 4x4	2013-2018	CY24,CYR5
FORD	TRANSIT V363 Bus (FAD, FBD) 2.2 TDCi All-wheel Drive	2015-2018	CV24,CVR5
FORD	TRANSIT V363 Bus (FAD, FBD) 2.2 TDCi RWD	2013-2018	CV24,CVR5,UYR6,UHR5,CYR5,USR6
FORD	TRANSIT V363 Platform/Chassis (FED, FFD) 2.0 EcoBlue	2016-	BKFA,BKFB,YMF6,YMFA,YMFB,YMFS,BJFA,BJFB,YLF6,YLFA,YLFB,YLFS,BLFA,BLFB,YNF6,YNFA,YNFB,YNFS
FORD	TRANSIT V363 Platform/Chassis (FED, FFD) 2.0 EcoBlue RWD	2016-	BKRA,YMHA,YMR6,BJRA,YLR6,YLRA,BLHA,BLRA,YNHA,YNR6
FORD	TRANSIT V363 Platform/Chassis (FED, FFD) 2.2 TDCi	2013-2018	CVF5,CY14,CYF5,CYFG,USF6,DRF5,DRFF,DRFG,CV24,CVR5,CY24,CYR5
FORD	TRANSIT V363 Platform/Chassis (FED, FFD) 2.2 TDCi RWD	2013-2018	UHR5,DRR5,CV24,CVR5,UYR6,CYR5,USR6
FORD	TRANSIT V363 Van (FCD, FDD) 2.0 EcoBlue	2016-	BJFA,BJFB,YLF6,YLFA,YLFB,YLFS,BKFA,BKFB,YMF6,YMFA,YMFB,YMFS,BLFA,BLFB,YNF6,YNFA,YNFB,YNFS
FORD	TRANSIT V363 Van (FCD, FDD) 2.0 EcoBlue 4x4	2017-	BKRA,YMR6,YMRA,BLRA,YNR6,YNRA
FORD	TRANSIT V363 Van (FCD, FDD) 2.0 EcoBlue RWD	2016-	BKRA,YMHA,YMR6,BJRA,YLR6,YLRA,BLHA,BLRA,YNHA,YNR6
FORD	TRANSIT V363 Van (FCD, FDD) 2.2 TDCi	2013-2018	CVF5,CY14,CYF5,CYFG,USF6,DRF5,DRFF,DRFG
FORD	TRANSIT V363 Van (FCD, FDD) 2.2 TDCi 4x4	2013-2018	CV24,CVR5,CY24,CYR5
FORD	TRANSIT V363 Van (FCD, FDD) 2.2 TDCi RWD	2013-2018	DRR5,CYR5,USR6,CV24,CVR5,UYR6

Products Advantage

1:1 Mold Development

1:1mold development Exact size

ZL111 Aluminium Material

ZL111 Aluminum material,hardness higher than 110HB.Close to the original surface treament.

Accurate And Efficient

CNC machine tools to ensure the accuracy efficiency of the products, especially the threads.

Electrophoresis Process

For iron products, we will use electrophoresis technology to achieve the effect of no rust and smooth surface.

Piston Hard Anodized

The piston are all hard anodized, high precision,
good wear resistance and not easy to rust.

Honing Multiple Times

At least 2times honing processes,morn smooth,no corners.

High-Quality Accessories

Polymer Characteristics

In addition to excellent general characteristics including heat resistance,weather resistance,ozone resistance, chemical resistance and electrical properties.
These grades of EP also offers a faster vulcanization rate,and lower compression set and stronger resistance to flex cracking than general-purpose EP.JSR EP grades are suited to application in functional parts such as packing or diaphragms.
EP331 and EP342,in particular. Offer the best compression set and cold resistance among any of SR EPgrades through the use of array operations with ethylene and propylene. Many of JSR grades have a low Mooney viscosity (M),and JSR EP lineup offers an excellent balance of both product properties and processability.

The Rubber Piston Cup user EPDM as the raw material labeled EP-35,all imported from

Japanand.all are imported to bring better sealing performance and oil return characteristics.

Accessories Quality Comparison Chart

Who We Are

28 Year+

Since 1995,TAIZHOU SHUANGYI AUTO PARTS CO.,LTD FOUND. We have 5000+㎡ Production office area,60+Professional staff,1 million+production output per year.
We are a professional China factory producing clutch cylinders, brake cylinders, brake calipers, brake proportional valves, hydraulic clutch bearings, water pump brackets, etc.
Based on independent testing laboratory and large stock, our factory sales cover 100+ countries and have 200+ partners.
We provide excellent auto parts with international standards and receiving sample processing, packaging design. Professional auto parts, what you need, we make!
