Products Description
| Part Name |

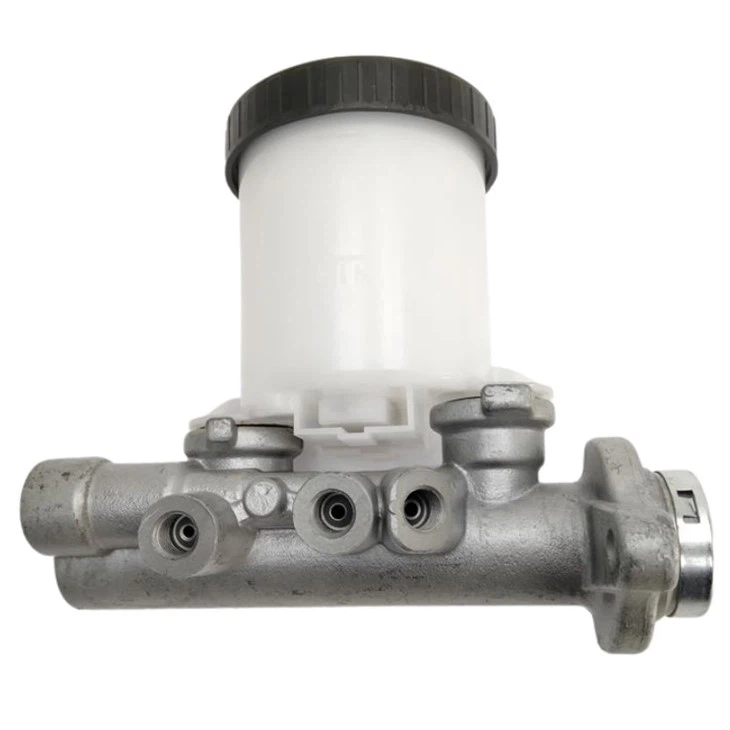

Brake Master Cylinder |
| Internal No. |
SY-BMC-1961 |
| OE No. |
46010-09G00 46010-1S700 46010-31G00 46010-31G01 46010-32G00 46010-41G00 46010-45G00 46010-92G00 46010-92G10 |
| Bore Size | 15/16"23.81MM |
| Material |
Aluminium |
Reference No.
|
RED LINE |
RBM-9N |
|
FENCO |
NM52270 |
|
MPA |
NM52263 |
|
MPA |
NM52258 |
|
RAYBESTOS BRAKES |
MC39594 |
|
WAGNER BRAKE |
MC115588 |
|
DORMAN |
M39791 |
|
WAGNER BRAKE |
F115588 |
|
CENTRIC PARTS |
131.42309 |
|
CENTRIC PARTS |
130.42310 |
|
CENTRIC PARTS |
130.42309 |
|
CARDONE |
11-2267 |
|
CARDONE |
11-2263 |
Adapted Models
|
Brand |
Model |
Year |
|
NISSAN |
D21 |
1986-1992 |
|
NISSAN |
PATHFINDER |
1987-1990 |
|
NISSAN |
PICKUP |
1986,1996-1997 |
Products Advantage
1:1mold development Exact size
ZL111 Aluminum material,hardness higher than 110HB.Close to the original surface treament.
CNC machine tools to ensure the accuracy efficiency of the products, especially the threads.
For iron products, we will use electrophoresis technology to achieve the effect of no rust and smooth surface.
The piston are all hard anodized, high precision,
good wear resistance and not easy to rust.
At least 2times honing processes,morn smooth,no corners.
High-Quality Accessories
Polymer Characteristics
-
In addition to excellent general characteristics including heat resistance,weather resistance,ozone resistance, chemical resistance and electrical properties.
These grades of EP also offers a faster vulcanization rate,and lower compression set and stronger resistance to flex cracking than general-purpose EP.JSR EP grades are suited to application in functional parts such as packing or diaphragms.
EP331 and EP342,in particular. Offer the best compression set and cold resistance among any of SR EPgrades through the use of array operations with ethylene and propylene. Many of JSR grades have a low Mooney viscosity (M),and JSR EP lineup offers an excellent balance of both product properties and processability.
The Rubber Piston Cup user EPDM as the raw material labeled EP-35, all imported from
Japan. All are imported to bring better sealing performance and oil return characteristics.
Who We Are
30 Year
- Since 1995,TAIZHOU SHUANGYI AUTO PARTS CO.,LTD FOUND. We have 5000+㎡ Production office area,60+Professional staff,1 million+production output per year.
- We are a professional China factory producing clutch cylinders, brake cylinders, brake calipers, brake proportional valves, hydraulic clutch bearings, water pump brackets, etc.
- Based on independent testing laboratory and large stock, our factory sales cover 100+ countries and have 200+ partners.
- We provide excellent auto parts with international standards and receiving sample processing, packaging design. Professional auto parts, what you need, we make!
500+m² Factory Area
60+Professional Staff
1 Million+Production
Output Per Year.
2000+ Applicable Model
Clutch Cylinders, Brake Cylinders, Brake Calipers, Brake Proportional Valves, Hydraulic Clutch Bearing, Water Pump Brackets, etc.
200+ Our Partner
With Excellent Quality And Sufficient Stock In Stock, We Export To More Than 100 Countries.
