Products Description
| Part Name |
Brake Master Cylinder |
| Internal No. |
SY-BMC-2434 |
| OE No. |
2H0 611 019 |
| Bore Size |
1 1/16"26.99MM |
| Material |
Aluminium |
Reference No.
|
ATE |
03.2126-5132.3 |
Adapted Models
|
Brand |
Model |
Year |
Engine |
|
Volkswagen |
AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B) 2.0 BiTDI Pickup |
2010-2012 |
CNEA,CSHA |
|
Volkswagen |
AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B) 2.0 BiTDI CD Highline 4motion Pickup |
2010-2012 |
CDCA |
|
Volkswagen |
AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B) 2.0 CD Highline Trendline BiTDI 4motion Pickup |
2011- |
CNEA,CSHA |
|
Volkswagen |
AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B) 3.0 TDI 4motion Pickup |
2016- |
DDXB |
|
Volkswagen |
AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B) 3.0 TDI Highline V6 4motion Pickup |
2016- |
DDXC,DDXD |
Products Advantage
1:1mold development Exact size
ZL111 Aluminum material,hardness higher than 110HB.Close to the original surface treament.
CNC machine tools to ensure the accuracy efficiency of the products, especially the threads.
For iron products, we will use electrophoresis technology to achieve the effect of no rust and smooth surface.
The piston are all hard anodized, high precision,
good wear resistance and not easy to rust.
At least 2times honing processes,morn smooth,no corners.
High-Quality Accessories
Polymer Characteristics
-
In addition to excellent general characteristics including heat resistance,weather resistance,ozone resistance, chemical resistance and electrical properties.
These grades of EP also offers a faster vulcanization rate,and lower compression set and stronger resistance to flex cracking than general-purpose EP.JSR EP grades are suited to application in functional parts such as packing or diaphragms.
EP331 and EP342,in particular. Offer the best compression set and cold resistance among any of SR EPgrades through the use of array operations with ethylene and propylene. Many of JSR grades have a low Mooney viscosity (M),and JSR EP lineup offers an excellent balance of both product properties and processability.
The Rubber Piston Cup user EPDM as the raw material labeled EP-35,all imported from
Japanand.all are imported to bring better sealing performance and oil return characteristics.
Accessories Quality Comparison Chart
Who We Are
28 Year+
- Since 1995,TAIZHOU SHUANGYI AUTO PARTS CO.,LTD FOUND. We have 5000+㎡ Production office area,60+Professional staff,1 million+production output per year.
- We are a professional China factory producing clutch cylinders, brake cylinders, brake calipers, brake proportional valves, hydraulic clutch bearings, water pump brackets, etc.
- Based on independent testing laboratory and large stock, our factory sales cover 100+ countries and have 200+ partners.
- We provide excellent auto parts with international standards and receiving sample processing, packaging design. Professional auto parts, what you need, we make!
500+m² Factory Area
60+Professional Staff
1 Million+Production
Output Per Year.
2000+ Applicable Model
Clutch Cylinders,Brake Cylinders,Brake Calipers,Brake Proportional Valves,Hydraulic Clutch Bearing,Water Pump Brackets, etc.
200+ Our Parter
With Excellent Quality And Sufficient Stock In Stock, We Export To More Than 100 Countries.
Why Choose Us
PRODUCTION LINE
ASSEMBLY LINE
TEST LAB
SPOT WAREHOUSE
上方是模板内容,下方是编辑器原内容,编辑好请删除原内容.
PRODUCT DETAILS HIGHLIGHTS

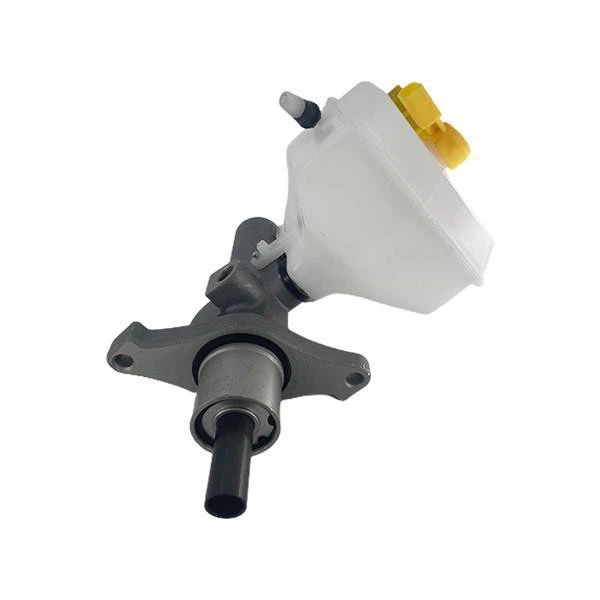

Part Name: Brake Master Cylinder
Part NO.:
OE NO.: 2H0 611 019/2H0 611 019C
Reference Numbers:
ATE : 03.2126-5132.3
Heat Treatment: Hard Oxidation
Surface/Finish: Same As Original
Reservoir/Tank Included: With Reservoir
Cylinder Material: Aluminum
Bore Size: 1 1/16''26.99MM
Thread Size: M12x1
Number Of Thread Bores:2
Left-/Right-Hand Drive Vehicles: For Left-Hand Drive Vehicles
Vehicle Fitment Information:
|
Model |
Year |
Engine |
CC |
KW |
Type |
|
Volkswagen AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B) 2.0 BiTDI |
2011- |
CNEA,CSHA |
1968 |
132 |
Pickup |
|
Volkswagen AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B) 2.0 BiTDI |
2010-2012 |
CDCA |
1968 |
120 |
Pickup |
|
Volkswagen AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B) 2.0 BiTDI CD Highline 4motion |
2010-2012 |
CDCA |
1968 |
120 |
Pickup |
|
Volkswagen AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B) 2.0 CD Highline Trendline BiTDI 4motion |
2011- |
CNEA,CSHA |
1968 |
132 |
Pickup |
