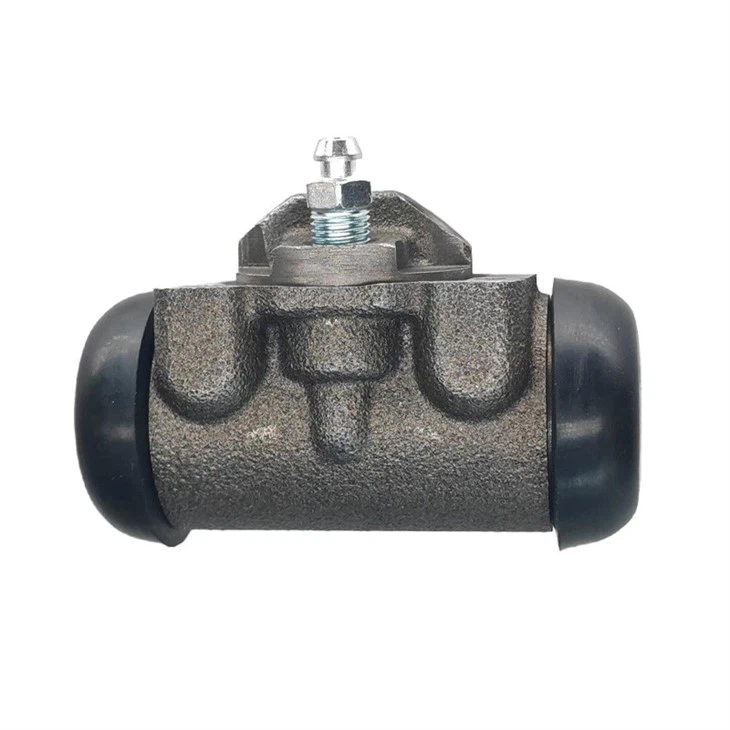

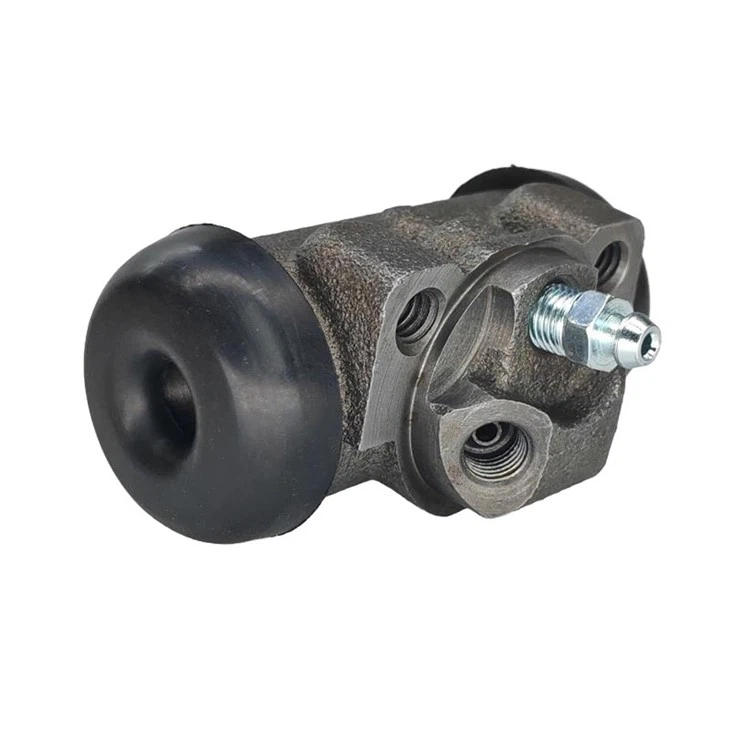

Products Description
| Part Name |
Brake Wheel Cylinder |
| Internal No. |
SY-BWC-1818L |
| OE No. |
391320C91 E7TZ2262A F4TZ2262A |
| Bore Size |
1 3/16"30.16MM |
| Material |
Grey Cast Iron |
Reference No.
|
Centric Parts |
134.65013 |
|
Centric Parts |
135.65013 |
|
ACDelco |
18E857 |
|
ACDelco |
18E88 |
|
ARI |
784-42013 |
|
ARI |
784-85013 |
|
ARI |
84-42013 |
|
Wagner Brake |
F113757 |
|
Aimco |
W906346 |
|
Wagner Brake |
WC113757 |
|
Coni-Seal |
WC13945 |
|
Raybestos Brakes |
WC37250 |
|
Navistar |
391320C91 |
|
DFC Wheel Cylinders - Archived |
375-54072 |
|
DORMAN |
W37250 |
Adapted Models
|
Brand |
Model |
Year |
|
Ford |
E-350 Super Duty |
1999-2000, 2004 |
|
Ford |
F-350 Super Duty |
1999-2000 |
|
Ford |
F-350 |
1988-2003 |
|
Ford |
E-350 Econoline Club Wagon |
1990-2002 |
|
Ford |
E-350 Club Wagon |
2003-2004 |
|
Ford |
E-350 Econoline |
1990-1998 |
|
Ford |
E-250 |
2003-2004 |
|
Ford |
E-250 Econoline |
2000-2002 |
|
Ford |
E-450 Super Duty |
2003-2004 |
Products Advantage
1:1mold development exact size
ZL111 Aluminum material, hardness higher than 110HB.Close to the original surface treatment.
CNC machine tools to ensure the accuracy and efficiency of the products, especially the threads.
For iron products, we will use electrophoresis technology to achieve the effect of no rust and a smooth surface.
The pistons are all hard anodized, have high precision, and good wear resistance, and are not easy to rust.
At least 2 times honing processes, more smooth, no corners.
High-Quality Accessories
Polymer Characteristics
-
In addition to excellent general characteristics including heat resistance, weather resistance, ozone resistance, chemical resistance, and electrical properties.
These grades of EP also offer a faster vulcanization rate, lower compression see, and stronger resistance to flex cracking than general-purpose EP.JSR EP grades are suited to application in functional parts such as packing or diaphragms.
EP331 and EP342,in particular. Offer the best compression set and cold resistance among any of SR EPgrades through the use of array operations with ethylene and propylene. Many of JSR grades have a low Mooney viscosity (M),and JSR EP lineup offers an excellent balance of both product properties and processability.
The Rubber Piston Cup user EPDM as the raw material labeled EP-35, all imported from
Japan, all are imported to bring better sealing performance and oil return characteristics.
Who We Are
30 Year
- Since 1995,TAIZHOU SHUANGYI AUTO PARTS CO.,LTD FOUND. We have 5000+㎡ Production office area,60+Professional staff,1 million+production output per year.
- We are a professional China factory producing clutch cylinders, brake cylinders, brake calipers, brake proportional valves, hydraulic clutch bearings, water pump brackets, etc.
- Based on an independent testing laboratory and large stock, our factory sales cover 100+ countries and have 200+ partners.
- We provide excellent auto parts with international standards and receiving sample processing, packaging design. Professional auto parts, what you need, we make!
500+m² Factory Area
60+Professional Staff
1 Million+Production
Output Per Year.
2000+ Applicable Model
Clutch Cylinders, Brake Cylinders, Brake Calipers, Brake Proportional Valves, Hydraulic Clutch Bearing, Water Pump Brackets, etc.
200+ Our Partner
With Excellent Quality And Sufficient Stock In Stock, We Export To More Than 100 Countries.
