How to Replace the Clutch Slave Cylinder

Apr 15, 2022 Leave a message

Step 1 - Prepare the vehicle

Park the vehicle on level ground or under a carport. Also, disconnect the negative battery cable from the car battery terminal.


Step 2 - Jack up the car

Use a car jack to jack up your vehicle and place a jack stand under it


2022041513531851900cf15c0845519cec33bcbb3264ac


STEP 3 - REMOVE HYDRAULIC LINES

Locate the driven clutch cylinder and remove the hydraulic lines or hoses that go into it. You may need to use some penetrating spray on the nut used to secure the hose to the slave cylinder. Be extra careful not to overbend the hydraulic line as it may crack or break.


Step 4 - Drain Cylinder Fluid

With the hose disconnected, place the drip pan under the slave cylinder and let fluid flow into it. After draining the liquid, set the drip tray aside and remember to take the liquid to a recycling center for proper disposal.

吸血鬼泵用于去除制动液

Step 5 - Remove Clutch Slave Cylinder

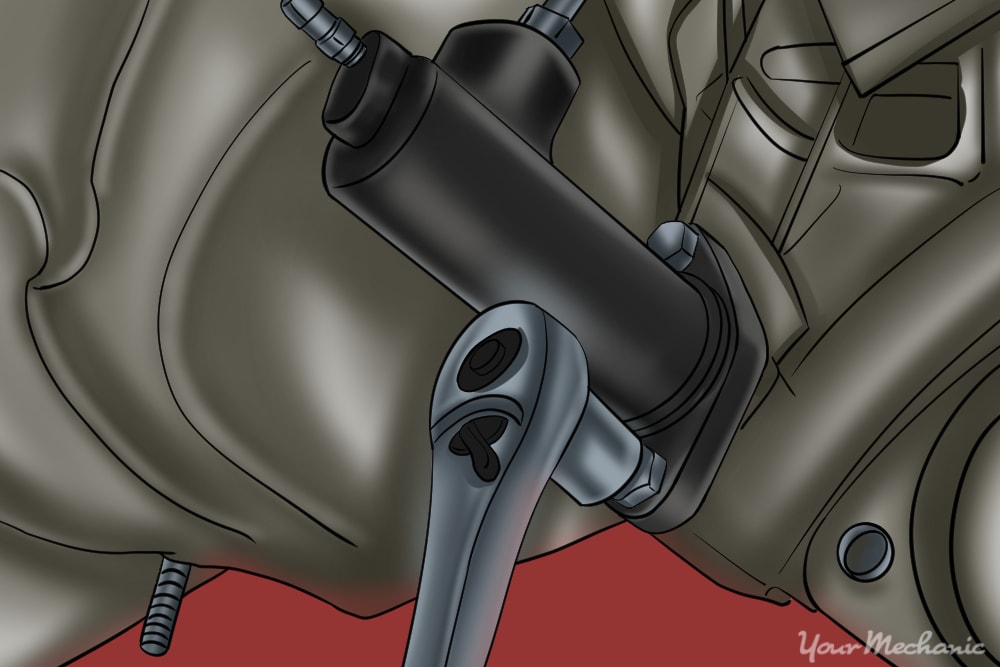

Use a wrench or socket to loosen the bolt and remove the clutch slave cylinder. Then, remove the slave cylinder and set it aside.

固定备用油缸的螺栓正在拆除

从发动机上拆下的从动缸


Step 6 - Install New Slave Cylinder

Using the bolts removed from the old slave cylinder, install the new ones. When bolting a new slave cylinder, be sure to push the clutch release arm forward while inserting the cylinder.

放气螺钉被移除


Step 7 - Connect Hydraulic Lines

Reconnect the hydraulic oil line to the new slave cylinder.

从动缸安装成功


Step 8 - Add Brake Fluid

Fill the clutch master cylinder reservoir with brake fluid and replace the cap.


Step 9 - Bleed the Clutch Slave Cylinder

Use a wrench to open the bleed valve on the new slave cylinder. Turn the valve only until fluid and air begin to escape from it. Be sure to put the drip pan back in place before doing this. After deflating the cylinder, close the bleed valve.


Step 10 - Fill the Tank with Fluid

Add extra brake fluid to top up the master cylinder reservoir.

填满水库

Step 11 - Discharge the cylinder again

To make sure you get all the air out of the system, you need to vent the slave cylinder again.


Step 12 - Refill the Reservoir as Needed

After a second bleed of the slave cylinder, refill the reservoir with brake fluid as needed.


Step 13 - Done
